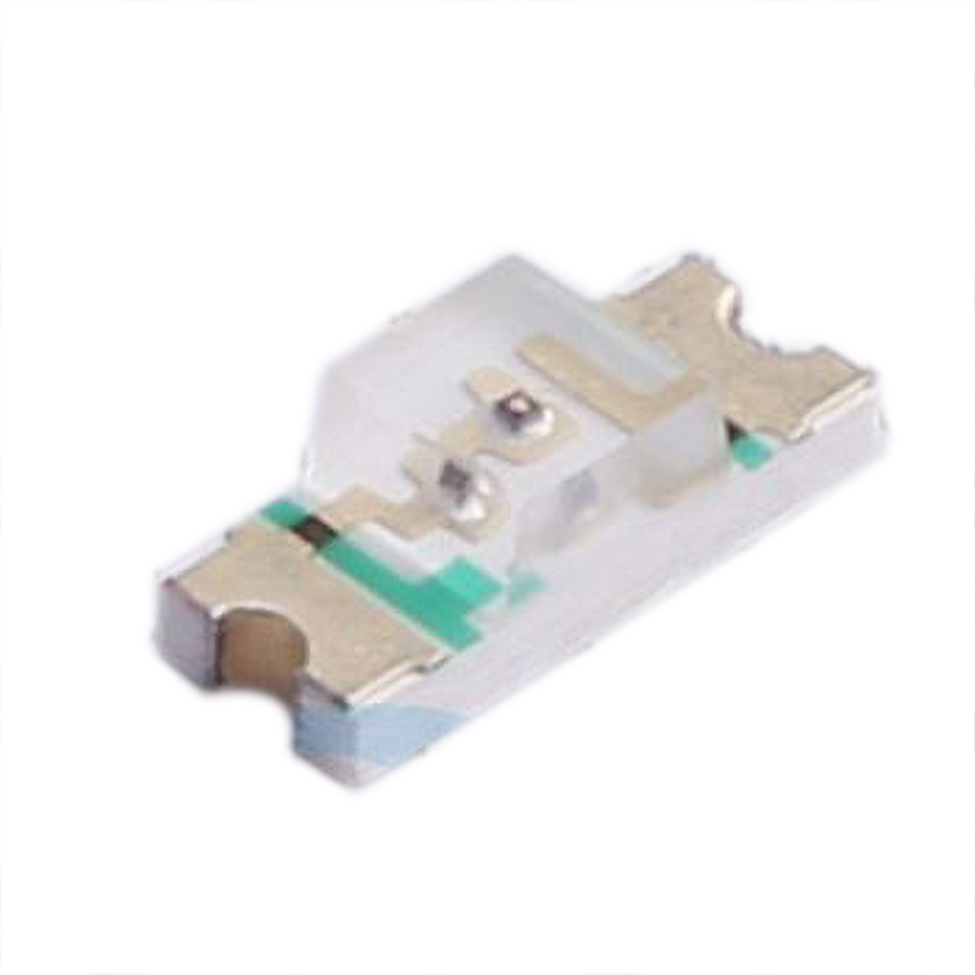

贴片发光二极管-顶部发光1206片式反贴发光二极管
Part Number | Outside | Emitting | Dominant | VF(V) | IV(mcd) | Data | |
MIN | MAX | ||||||
3.2*1.25*1.1 | White | x:0.28,y:0.26 | 2.75 | 3.65 | 450-900 | ||
3.2*1.25*1.1 | Blue | 460~475nm | 2.75 | 3.655 | 460~475 | ||
| MHT151UGCT | 3.2*1.25*1.1 | Green | 515~535nm | 2.7 | 3.4 | 450~1120 | |
| MHT151CYCT | 3.2*1.25*1.1 | Yellow | 585.5~594.5nm | 1.75 | 2.35 | 72~180 | |
| MHT151CGCT | 3.2*1.25*1.1 | Yellow Green | 567.5~575.5nm | 1.75 | 2.35 | 18~45 | |
| MHT151CRCT | 3.2*1.25*1.1 | Red | 617.5~633.5nm | 1.75 | 2.35 | 22.4~57 | |
| MHT151CRLGCT | 3.2*1.25*1.1 | Red Green | R:Typ622nm G:515~530nm | 1.7 2.7 | 2.4 3.6 | 72~180 45~1120 | |
